Diagram Ribbon

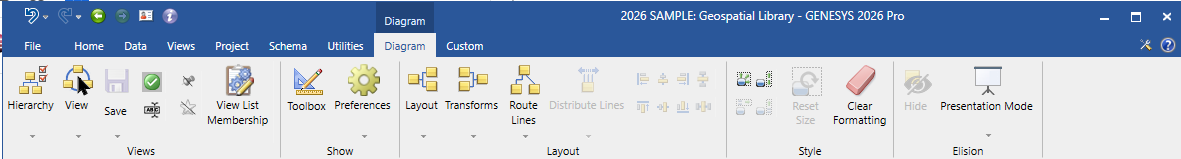

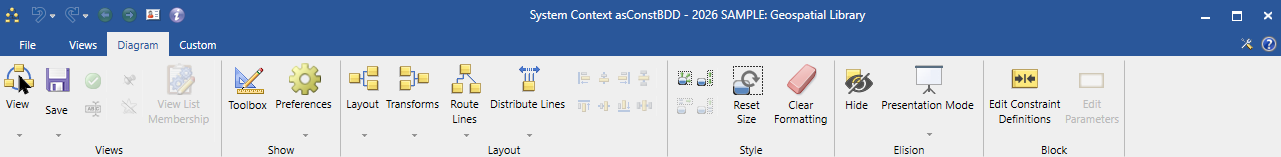

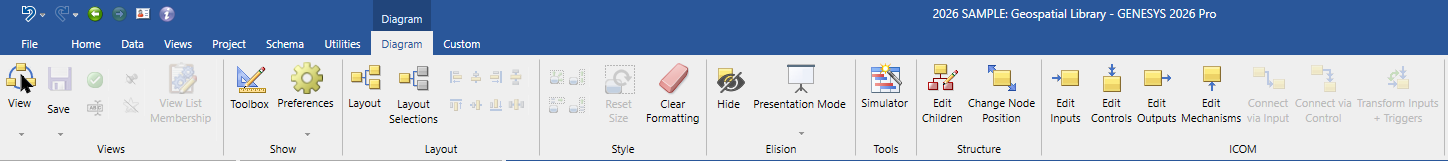

The Diagram ribbon contains the common commands that are used throughout GENESYS. The commands that are shaded become active when a user selects a valid option in Project Explorer.

Commands

Views

• Hierarchy Definitions - available for Spider and Hierarchy diagrams only

• View

• Save (View)

• Save As

• Save As Image

• Default

• Rename

• Pin a Diagram

• Star a Diagram as a Favorite

• View List Membership

Show

• Toolbox

• Preferences

• Show Animations

• Show Grid

• Show Navigation Tool

• Show Snap Lines

• Show Tooltips

Layout

• Layout

• Layout Selections

Alignment

• Align Left

• Align Center

• Align Right

• Align Top

• Align Middle

• Align Bottom

Style

• Auto-size Icon

• Auto-size Icon Height

• Set Equal Width

• Set Equal Height

• Reset Size

• Clear Formatting

Elision

• Hide

• Presentation Mode

Diagram-Specific Commands

In addition to the common commands that apply to all diagrams, many diagrams have additional diagram-specific commands, shown below. The commands that are shaded become active when a user selects certain criteria.

Spider

Additional commands -

Layout

• Transforms (in place of Layout Selections)

  • Mirror on X-axis

  • Mirror on Y-axis

  • Rotate 90 degrees Clockwise

  • Rotate 90 degrees Counterclockwise

• Route Lines

  • Route All Lines Orthogonally

  • Route Selected Lines Orthogonally

  • Route All Lines Using PolyLine Routing

  • Route Selected Lines Using PolyLine Routing

  • Route All Lines Using StraightLine Routing

  • Route Selected Lines Using StraightLine Routing

• Distribute Lines

  • Left Face

  • Right Face

  • Top Face

  • Bottom Face

Hierarchy

Additional commands - None

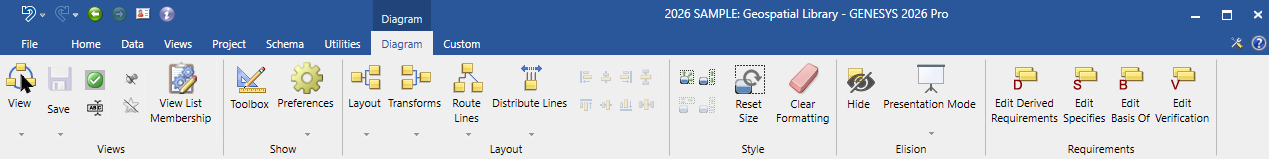

Requirements

Additional commands -

Requirements

• Edit Derived Requirements

• Edit Specifies

• Edit Basis Of

• Edit Verification

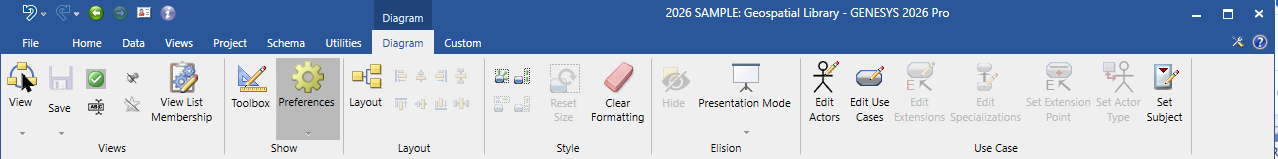

Use Case

Additional commands -

Use Case

• Edit Actors

• Edit Use Cases

• Edit Extensions

• Edit Specializations

• Set Extension Point

• Set Actor Type

• Set Subject

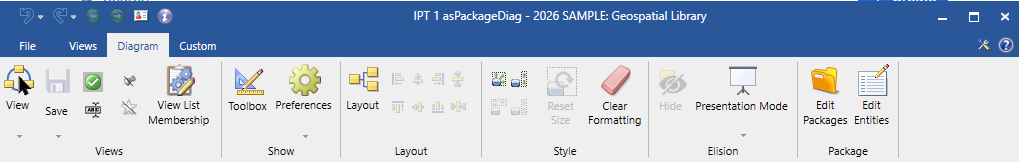

Package

Additional commands -

Package

• Edit Packages

• Edit Entities

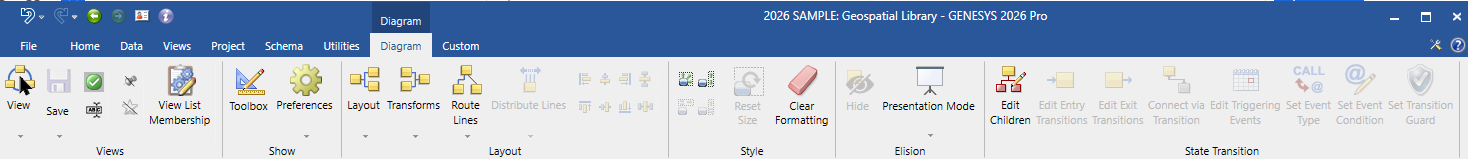

State Transition

Additional commands -

Layout

• Transforms (in place of Layout Selections)

  • Mirror on X-axis

  • Mirror on Y-axis

  • Rotate 90 degrees Clockwise

  • Rotate 90 degrees Counterclockwise

• Route Lines

  • Route All Lines Orthogonally

  • Route Selected Lines Orthogonally

  • Route All Lines Using PolyLine Routing

  • Route Selected Lines Using PolyLine Routing

  • Route All Lines Using StraightLine Routing

  • Route Selected Lines Using StraightLine Routing

• Distribute Lines

  • Left Face

  • Right Face

  • Top Face

  • Bottom Face

State Transition

• Edit Children

• Edit Entry Transitions

• Edit Exit Transitions

• Connect Via Transition

• Edit Triggering Events

• Set Event Type

• Set Event Condition

• Set Transition Guard

Parametric

Additional commands -

Layout

• Transforms (in place of Layout Selections)

• Mirror on X-axis

• Mirror on Y-axis

• Rotate 90 degrees Clockwise

• Rotate 90 degrees Counterclockwise

• Route LInes

• Route All Lines Orthogonally

• Route Selected Lines Orthogonally

• Route All Lines Using PolyLine Routing

• Route Selected Lines Using PolyLine Routing

• Route All Lines Using StraightLine Routing

• Route Selected Lines Using StraightLine Routing

• Distribute LInes

• Left Face

• Right Face

• Top Face

• Bottom Face

Parametric

• Edit Dependent Variables

• Edit Expression

• Edit Independent Variables

• Edit Mappings

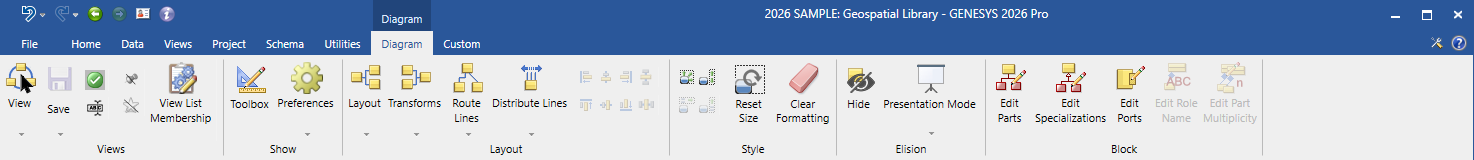

BDD

Additional commands -

Block

• Edit Parts

• Edit Specializations

• Edit Ports

• Edit Role Name

• Edit Part Multiplicity

Constraint BDD

Additional commands -

Block

• Edit Constraint Definitions

• Edit Parameters

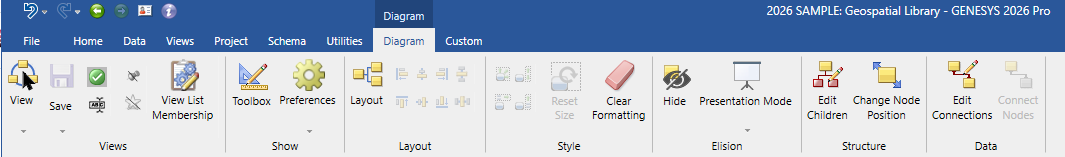

Physical N2

Additional commands -

Style - Most of these commands will be disabled since the diagram objects cannot be sized individually.

Structure

• Edit Children

• Change Node Position

Data

• Edit Connections

• Connect Nodes

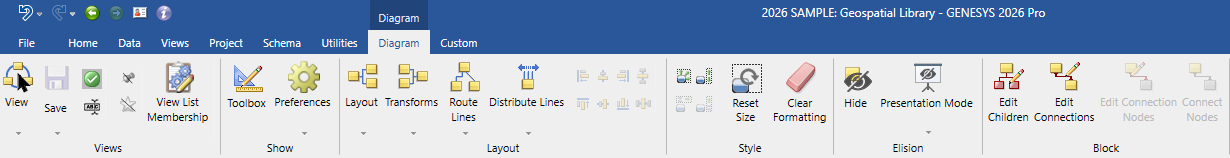

Physical Block

Additional commands -

Layout

• Transforms (in place of Layout Selections)

  • Mirror on X-axis

  • Mirror on Y-axis

  • Rotate 90 degrees Clockwise

  • Rotate 90 degrees Counterclockwise

• Route LInes

  • Route All Lines Orthogonally

  • Route Selected Lines Orthogonally

  • Route All Lines Using PolyLine Routing

  • Route Selected Lines Using PolyLine Routing

  • Route All Lines Using StraightLine Routing

  • Route Selected Lines Using StraightLine Routing

• Distribute Lines

  • Left Face

  • Right Face

  • Top Face

  • Bottom Face

Block

• Edit Children

• Edit Connections

• Edit Connection Nodes

• Connect Nodes

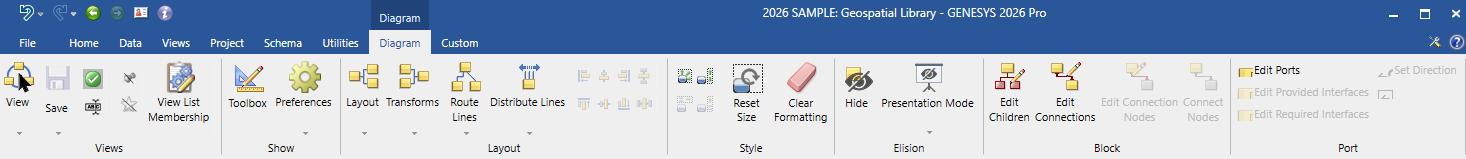

Flow Internal Block

Additional commands -

Layout

• Transforms (in place of Layout Selections)

  • Mirror on X-axis

  • Mirror on Y-axis

  • Rotate 90 degrees Clockwise

  • Rotate 90 degrees Counterclockwise

• Route Lines

  • Route All Lines Orthogonally

  • Route Selected Lines Orthogonally

  • Route All Lines Using PolyLine Routing

  • Route Selected Lines Using PolyLine Routing

  • Route All Lines Using StraightLine Routing

  • Route Selected Lines Using StraightLine Routing

• Distribute Lines

  • Left Face

  • Right Face

  • Top Face

  • Bottom Face

• Block

  • Edit Children

  • Edit Connections

  • Edit Connection Nodes

  • Connect Nodes

• Port

  • Edit Ports

  • Edit Provided Interfaces

  • Edit Required Interfaces

  • Set Direction

  • Set As Conjugate

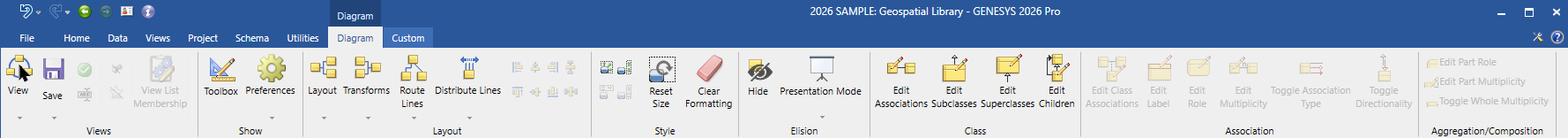

Class

Additional commands -

Layout

• Transforms (in place of Layout Selections)

  • Mirror on X-axis

  • Mirror on Y-axis

  • Rotate 90 degrees Clockwise

  • Rotate 90 degrees Counterclockwise

• Route Lines

  • Route All Lines Orthogonally

  • Route Selected Lines Orthogonally

  • Route All Lines Using PolyLine Routing

  • Route Selected Lines Using PolyLine Routing

  • Route All Lines Using StraightLine Routing

  • Route Selected Lines Using StraightLine Routing

• Distribute Lines

  • Left Face

  • Right Face

  • Top Face

  • Bottom Face

Class

• Edit Associations (with Component selected)

• Edit Subclasses (with Component selected)

• Edit Superclasses (with Component selected)

• Edit Children (with Component selected)

Association

• Edit Class Associations (with UMLAssociation selected)

• Edit Label (with UMLAssociation selected)

• Edit Role (with UMLAssociation selected)

• Edit Multiplicity (with UMLAssociation selected)

• Toggle Association Type (with UMLAssociation selected)

• Toggle Directionality (with UMLAssociation selected)

Aggregation/Composition

• Edit Part Role (with built from/built in relation selected)

• Edit Part Multiplicity (with built from/built in relation selected)

• Toggle Whole Multiplicity (with built from/built in relation selected)

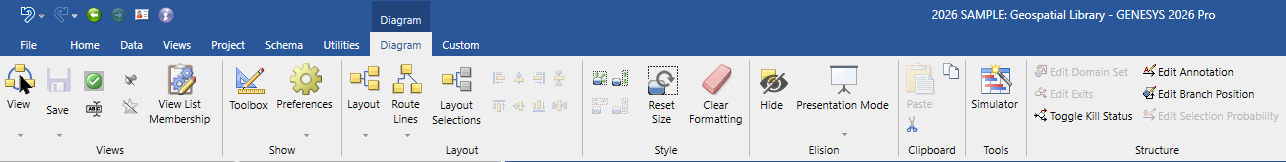

FFBD

Additional commands -

Clipboard

• Paste

• Cut

• Copy

Tools

• Simulator

Structure

• Edit Domain Set

• Edit Exits

• Toggle Kill Status

• Edit Annotation

• Edit Branch Position

• Edit Selection Probability

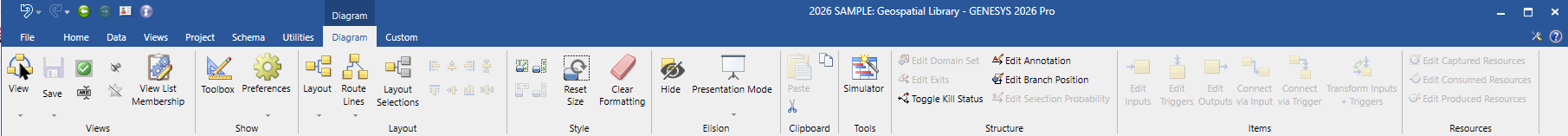

EFFBD

Additional commands -

Clipboard

• Paste

• Cut

• Copy

Tools

• Simulator

Structure

• Edit Domain Set

• Edit Exits

• Toggle Kill Status

• Edit Annotation

• Edit Branch Position

• Edit Selection Probability

Items

• Edit Inputs

• Edit Triggers

• Edit Outputs

• Connect Via Input

• Connect Via Trigger

• Transform Inputs + Triggers

Resources

• Edit Captured Resources

• Edit Consumed Resources

• Edit Produced Resources

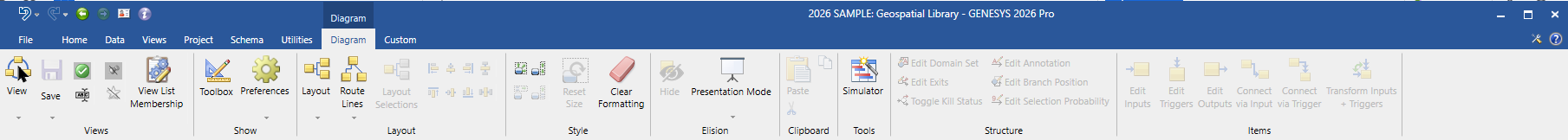

Activity

Additional commands -

Clipboard

• Paste

• Cut

• Copy

Tools

• Simulator

Structure

• Edit Domain Set

• Edit Exits

• Toggle Kill Status

• Edit Annotation

• Edit Branch Position

• Edit Selection Probability

Items

• Edit Inputs

• Edit Triggers

• Edit Outputs

• Connect Via Input

• Connect Via Trigger

• Transform Inputs + Triggers

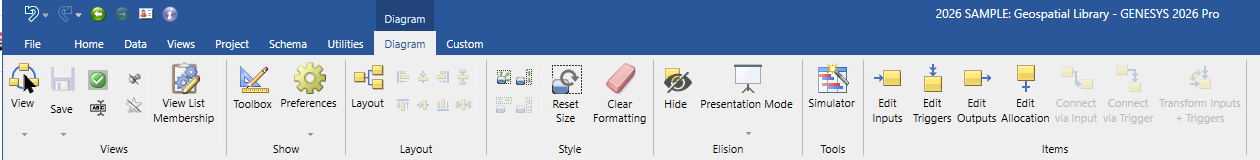

Sequence

Additional commands -

Tools

• Simulator

Items

• Edit Inputs

• Edit Triggers

• Edit Outputs

• Connect Via Input

• Connect Via Trigger

• Transform Inputs + Triggers

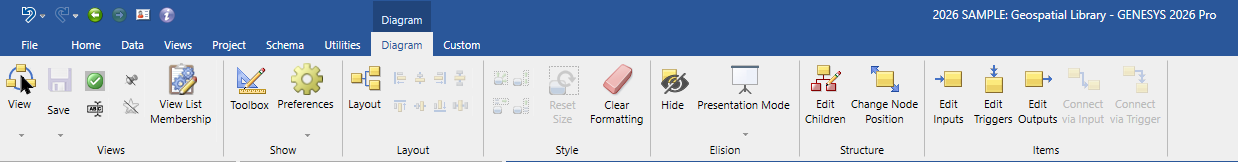

N2

Additional commands -

Style - Most of these commands will be disabled since the diagram objects cannot be sized individually.

Structur

• Edit Children

• Change Node Position

Items

• Edit Inputs

• Edit Triggers

• Edit Outputs

• Connect Via Input

• Connect Via Trigger

IDEF0

Additional commands -

Style - Most of these commands will be disabled since the diagram objects cannot be sized individually.

Tools

• Simulator

Structure

• Edit Children

• Change Node Position

ICOM

• Edit Inputs

• Edit Triggers

• Edit Outputs

• Edit Mechanisms

• Connect Via Input

• Connect Via Trigger

• Transform Inputs + Triggers

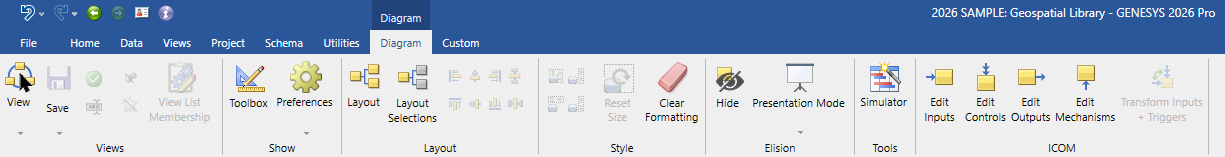

IDEF0 A-0

Additional commands -

Tools

• Simulator

ICOM

• Edit Inputs

• Edit Triggers

• Edit Outputs

• Edit Mechanisms

• Connect Via Input

• Connect Via Trigger

• Transform Inputs + Triggers
